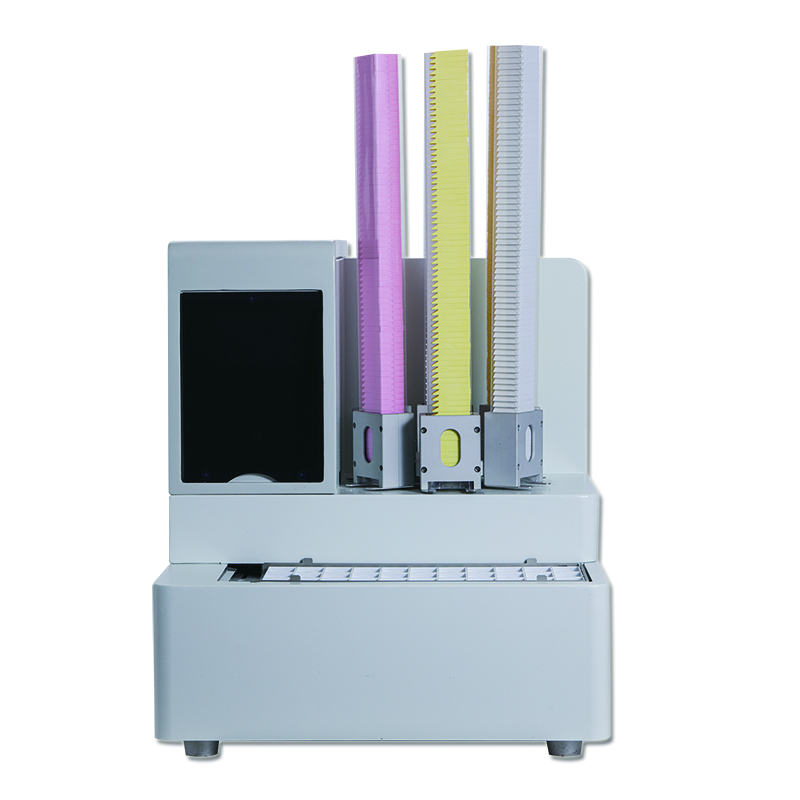

6-Slot Tissue Cassette Laser Printer

Availability:

6-Slot Tissue Cassette Laser Printer

Advantages

◆ CLEAR PRINT QUALITY

◆ TRAY COLLECTION

◆ LARGE COLLECTION QUANTITY

◆ PERMANENT LABELS FOR HISTOLOGY LONG LIFE STORAGE

◆ ULTRA-FAST PRINTING

◆ AUTOMATIC CLEANING



Dimension:

54cmx44cmx49cm

Weight:

40 KGS

Voltage:

AC100V-240V,50Hz-60Hz

Working temp Range:

-5℃-40℃

Comprehensive Energy consumption:

120W

Capacity of loading:

660 cassettes

Capacity of collection:

330 cassettes

Printing Speed:

>20 casettes/minute


6-slot tissue cassette laser printer
6-slot tissue cassette laser printer
6-slot tissue cassette laser printer


Performance and technical parameters

    Advanced Technology

Using UV laser printing technology, without ribbon box ink and other consumables



    Durability And Reliable

Can be loaded at the same time 6 different specifications or different colors of embedded boxes.

The embedded box to be printed is placed horizontally in the feeding rack without getting stuck

The printed QR code is 100% scannable.

There is no limit to the number of fields to be printed if the print area is allowed

The writing printed on the embedded box is resistant to scratching,xylene, alcohol and other organic solvents.

The data in the list to be printed has the power off function, so that the edited data will not be lost.

The printing point of the buried box is equipped with electromagnet point position device, and the printing point positioning is accurate.

The buried box should be pushed forward laterally rather than forward on an inclined plane to avoid overlapping the buried box on the tray during collection


    Stable Performance&Friendly Operation

The front of the machine has a translucent window that can be opened to observe the printing process, maintenance debugging or other printing requirements.

Pack buried box printing plane edge or even next to the step can be printed, printing range is larger.

Each field and QR code can be customized to print grayscale.

Batch printing,individual printing, two-dimensional code scanning printing, interface input printing, online printing with hospital LIS or HIS and other printing modes.

You can edit field names on the page. There is no limit to the number of fields that can be printed.

The interface of the printing software includes editing interface, list to be printed, list of printed, alarm list and other functions.

The embedded boxes of different colors or specifications can be manually or automatically selected for printing.

The width of the device shall not exceed 440mm.

Export the printed information to a file for statistical analysis.

Edit the template on the print page.

6 feeding slots can be set by color or specification group, or all 6 feeding slots can be used if there are less than 6 colors or specifications.

Equipped with air handling system and automatic cleaning function of pipeline.

The loading rack of the embedded box can be customized to support tube mounting or adhesive tape mounting.



    Key Parameters

6 feeding rack, can load 6 embedded boxes at the same time. Each feeding rack shall be loaded with not less than 100 embedded boxes at a time.

No less than 600 embedded boxes can be loaded at one time.

No less than 10 collection disks can be loaded at one time.

A collection disk can collect at least 27 buried boxes. No less than 270 printed embedded boxes can be collected at one time.

10-pack buried box collection disk is built in the machine, first in first out,each collection disk can be taken out at any time after full collection,without stopping.
