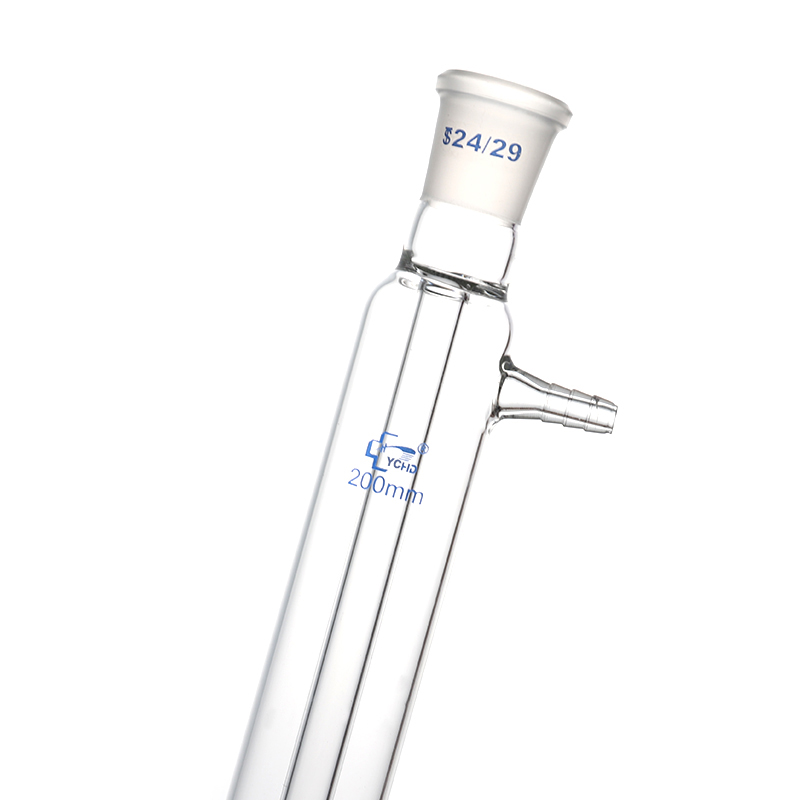

| 5021 | Condenser, straight shape, Standard ground mouth | ||
| Length of jacket(mm) | Cround mouth | Cooling area(dm2) | length(mm) |
| 80 | 10/19 | 0.16 | 165 |
| 80 | 14/23 | 0.16 | 175 |
| 150 | 14/23 | 0.6 | 254 |
| 200 | 14/23 | 1 | 305 |
| 200 | 19/26 | 1 | 332 |
| 200 | 24/29 | 1 | 350 |
| 200 | 29/32 | 1 | 360 |
| 300 | 19/26 | 1.6 | 432 |
| 300 | 24/29 | 1.6 | 450 |
| 300 | 29/32 | 1.6 | 460 |
| 400 | 19/26 | 2.1 | 535 |
| 400 | 24/29 | 2.1 | 555 |
| 400 | 29/32 | 2.1 | 560 |
| 500 | 19/26 | 2.7 | 632 |
| 500 | 24/29 | 2.7 | 650 |
| 500 | 29/32 | 2.7 | 660 |
| 600 | 19/26 | 3.2 | 735 |
| 600 | 24/29 | 3.2 | 735 |
| 600 | 29/32 | 3.2 | 760 |
| 5022 | Condenser ,with bulbed inner tube, Standard ground mouth | ||
| Length of jacket(mm) | Cround mouth | Cooling area(dm2) | Total length(mm) |
| 150 | 14/23 | 0.6 | 235 |
| 200 | 14/23 | 1.1 | 295 |
| 200 | 19/26 | 1.1 | 330 |
| 200 | 24/29 | 1.1 | 350 |
| 200 | 29/32 | 1.1 | 360 |
| 300 | 14/23 | 1.6 | 405 |
| 300 | 19/26 | 1.6 | 430 |
| 300 | 24/29 | 1.6 | 450 |
| 300 | 29/32 | 1.6 | 460 |
| 400 | 19/26 | 2.2 | 530 |
| 400 | 24/29 | 2.2 | 550 |
| 400 | 29/32 | 2.2 | 560 |
| 500 | 19/26 | 3 | 630 |
| 500 | 24/29 | 3 | 650 |
| 500 | 29/32 | 3 | 660 |
| 600 | 19/26 | 3.7 | 730 |
| 600 | 26/29 | 3.7 | 750 |
| 600 | 29/32 | 3.7 | 760 |
| 5023 | Condenser ,with coiled inner tube, Standard ground mouth | ||
| Length of jacket(mm) | Cround mouth | Cooling area(dm2) | Total length(mm) |
| 150 | 14/23 | 1.2 | 235 |
| 200 | 14/23 | 2.3 | 295 |
| 200 | 19/26 | 2.3 | 330 |
| 200 | 24/29 | 2.3 | 350 |
| 300 | 19/26 | 3.5 | 430 |
| 300 | 24/29 | 3.5 | 450 |
| 300 | 29/32 | 3.5 | 460 |
| 400 | 19/26 | 4.7 | 530 |
| 400 | 24/29 | 4.7 | 550 |
| 400 | 29/32 | 4.7 | 560 |
| 500 | 19/26 | 5.7 | 630 |
| 500 | 24/29 | 5.7 | 650 |
| 500 | 29/32 | 5.7 | 660 |
| 600 | 19/26 | 7.7 | 730 |
| 600 | 24/29 | 7.7 | 750 |
| 600 | 29/32 | 7.7 | 760 |
| 5024 | Condenser reflux, with coiled inner tube, Standard ground mouth | ||
| Length of jacket(mm) | Cround mouth | Cooling area(dm2) | Total length(mm) |
| 150 | 14/23 | 2 | 235 |
| 200 | 14/23 | 3.7 | 295 |
| 200 | 19/26 | 3.7 | 330 |
| 200 | 24/29 | 3.7 | 350 |
| 200 | 29/32 | 3.7 | 360 |
| 300 | 19/26 | 5.4 | 430 |
| 300 | 24/29 | 5.4 | 450 |
| 300 | 29/32 | 5.4 | 460 |
| 400 | 19/26 | 7.3 | 530 |
| 400 | 24/29 | 7.3 | 550 |
| 400 | 29/32 | 7.3 | 560 |
| 500 | 19/26 | 9.2 | 630 |
| 500 | 24/29 | 9.2 | 650 |
| 500 | 29/32 | 9.2 | 660 |
